Introduction

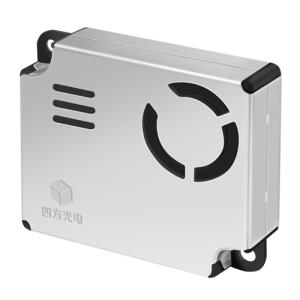

PM2008M-M add screw hole design laser particle sensor module is based on laser scattering technology, ultra-thin (12mm) designed with all metal shielding.Detecting particle concentration size between 0.3μ-10μm in the air and real-time output PM1.0、PM2.5、PM10 in μg/m3 via mathematical algorithm and scientific calibration.
Features
1.Hanging ear design for easy installation
2.Real-time output PM1.0, PM2.5, PM10 in μg/m3 available
3.All metal shielding, strong anti-interference
4.Smaller and thinner structure design, height only 12mm
5.High accuracy, High sensitive and quick response (≤8s)
6.Signal output optional: UART, I²C
Applications
1.Air Purifier
2.Fresh Air System
3.Fresh Air System Controller
4.Air Quality Monitor
